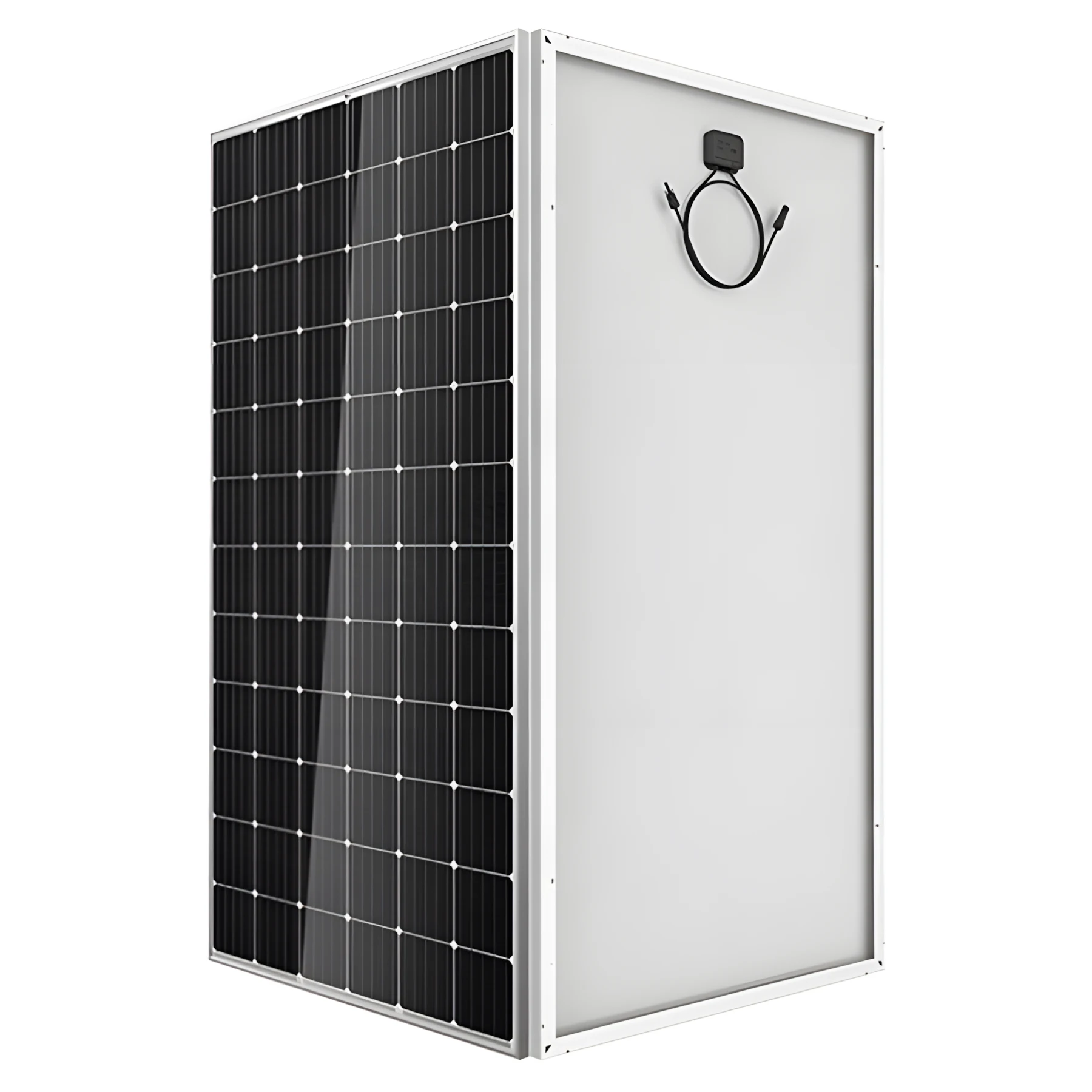

Description

Key Features:

• High Power Output: Delivers a maximum power output of 390W under standard test conditions.

• Advanced PERC Cell Technology: Enhances light absorption, leading to higher module efficiency and reduced power degradation over time.

• Durability: Built to withstand heavy snow loads up to 5400 Pa and wind loads up to 2400 Pa, ensuring longevity in diverse climates.

• Environmental Resilience: Operates efficiently across a wide temperature range from -40°C to +85°C, making it suitable for various environments.

• Quality Manufacturing: Produced using a 100% automatic production line, ensuring consistent quality and performance.

Technical Specifications:

• Model: PS390W#PVPI

• Maximum Power (Pmax): 390W

• Module Efficiency: 19.66%

• Open Circuit Voltage (Voc): 48.82V

• Short Circuit Current (Isc): 9.91A

• Maximum Power Voltage (Vmp): 41.62V

• Maximum Power Current (Imp): 9.37A

• Power Tolerance: 0 ~ +3%

• Cell Type: Monocrystalline PERC, 158.75 x 158.75 mm

• Cell Configuration: 72 cells (6 x 12)

• Front Cover: 3.2 mm High Transmission, Low Iron, Tempered Glass with Anti-Reflective Coating

• Back Cover: Composite film

• Frame: Anodized Aluminum Alloy type 6063 – T5 (Silver/Black)

• Junction Box: IP68 rated with 3 bypass diodes

• Dimensions: 1980 x 1002 x 40 mm

• Weight: 23 kg (approx.)

• Output Cable: 4 mm² (IEC)/12 AWG (UL), 1100 mm length

• Connector: MC4 Compatible

• Operating Temperature: -40°C to +85°C

• Maximum System Voltage: 1500 VDC

• Maximum Series Fuse Rating: 20A

• Nominal Module Operating Temperature (NMOT): 45°C ± 2°C

• Application Class: Class A
