Description

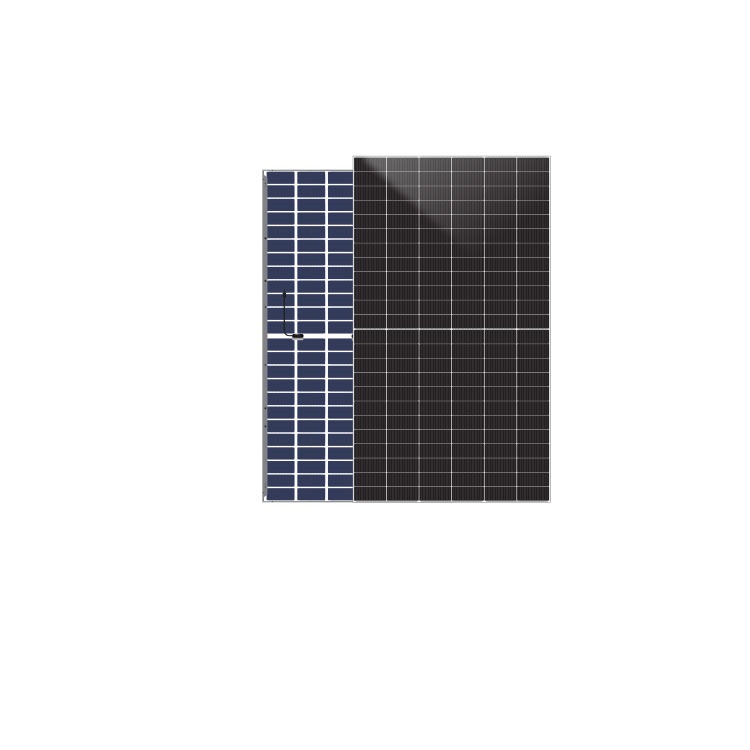

The Power Solid 620W bifacial N-Type solar panel is a high-efficiency photovoltaic module for residential and commercial applications. N-Type TOPCon cells deliver strong performance, durability and energy yield, and the bifacial design captures sunlight from both the front and rear sides to maximize generation.
Key Features
- Maximum power output of 620W under standard test conditions
- Bifacial design: captures sunlight from both sides for up to 25% more energy
- TOPCon cell technology for higher efficiency and lower degradation over time
- Double-glass construction resists UV, PID and mechanical stress
- Low temperature coefficient for better performance in hot environments
- Complies with international safety and performance standards
Specifications
- Model: PS620W#BPVD
- Maximum power (Pmax): 620W
- Module efficiency: 23.0%
- Open circuit voltage (Voc): 55.56V
- Short circuit current (Isc): 14.19A
- Maximum power voltage (Vmp): 45.90V
- Maximum power current (Imp): 13.51A
- Power tolerance: 0 to +5W
- Cell type: N-Type TOPCon, 144 cells (6 × 12)
- Dimensions: 2382 × 1134 × 30 mm
- Weight: 33.5 kg
- Glass: Double glass
- Frame: Anodized aluminium alloy
- Junction box: IP68
- Operating temperature: -40°C to +85°C
- Maximum system voltage: 1500V DC
- Maximum series fuse rating: 30A
- Mechanical load: Snow 5400Pa / wind 2400Pa
- Product warranty: 10 years
Ideal For
- Residential rooftop systems
- Commercial solar installations
