Description
Key Features:
-
True Double-Conversion Technology: Provides consistent and clean power by converting incoming AC power to DC and then back to AC, eliminating all power disturbances.
-
Advanced DSP Control: Digital Signal Processing ensures high performance and system reliability.
-
Wide Input Voltage Range: Operates efficiently within a voltage range of 190–520 VAC (3-phase), accommodating unstable power conditions.
-
High Output Power Factor: Delivers an output power factor of 0.9, ensuring efficient utilization of power.
-
Frequency Converter Mode: Supports 50Hz/60Hz frequency conversion, providing flexibility for various applications.
-
ECO Mode Operation: An energy-saving mode that improves efficiency during periods of low load.
-
Emergency Power Off (EPO): Equipped with an EPO function for immediate shutdown during emergencies, ensuring safety.
-
Maintenance Bypass: Allows for uninterrupted power supply during maintenance activities.
-
Optional N+X Parallel Redundancy: Supports parallel operation for enhanced reliability and scalability.
Technical Specifications:
-

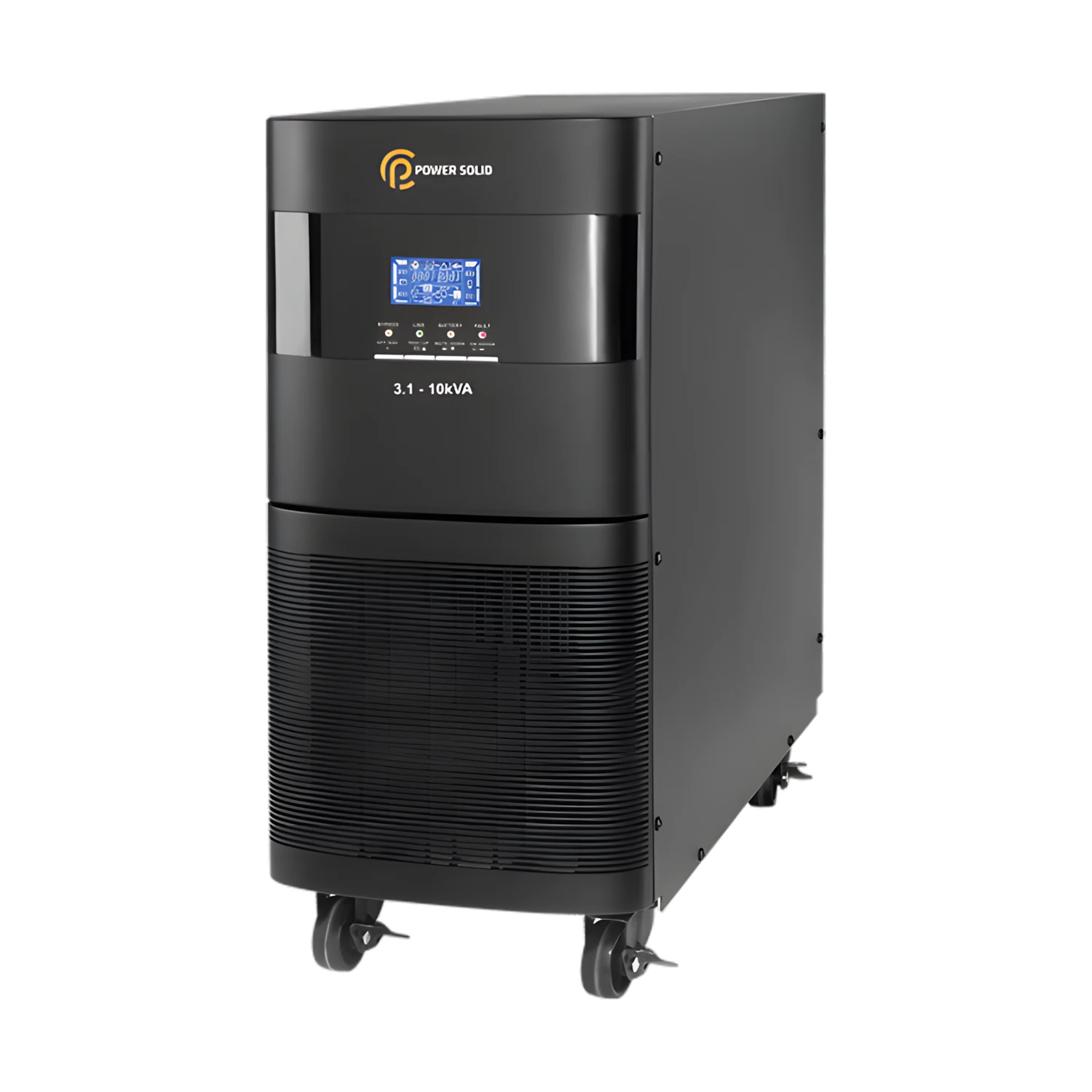

Model: PS-POU10K31#20BC0A
-
Phase: Three-Phase Input / Single-Phase Output
-
Capacity: 10,000 VA / 9,000 W
-
Input Voltage Range: 190–520 VAC (3-phase)
-
Input Frequency Range: 46–54Hz or 56–64Hz
-
Input Power Factor: 0.99 at 100% load
-
Output Voltage: 208/220/230/240 VAC (selectable)
-
Output Frequency: 50Hz or 60Hz ± 0.1Hz (battery mode)
-
Voltage Regulation: ±1%
-
Waveform: Pure Sine Wave
-
Efficiency: 91.5% (AC mode), 97% (Battery mode), 87% (ECO mode)
-
Battery Type: 12V / 9Ah sealed lead-acid batteries
-
Number of Batteries: 20
-
Charging Time: <9 hours to 90% capacity
-
Charging Voltage: 273 VDC ± 1%
-
Dimensions (D x W x H): 592 x 250 x 576 mm
-
Net Weight: 83 kg
-
Operating Temperature: 0–40°C
-
Humidity: 20–90% RH (non-condensing)
-
Noise Level: <50 dB at 1 meter
-
Certifications: CE, RoHS
-
Warranty: 4 years for UPS, 2 years for batteries
