Description

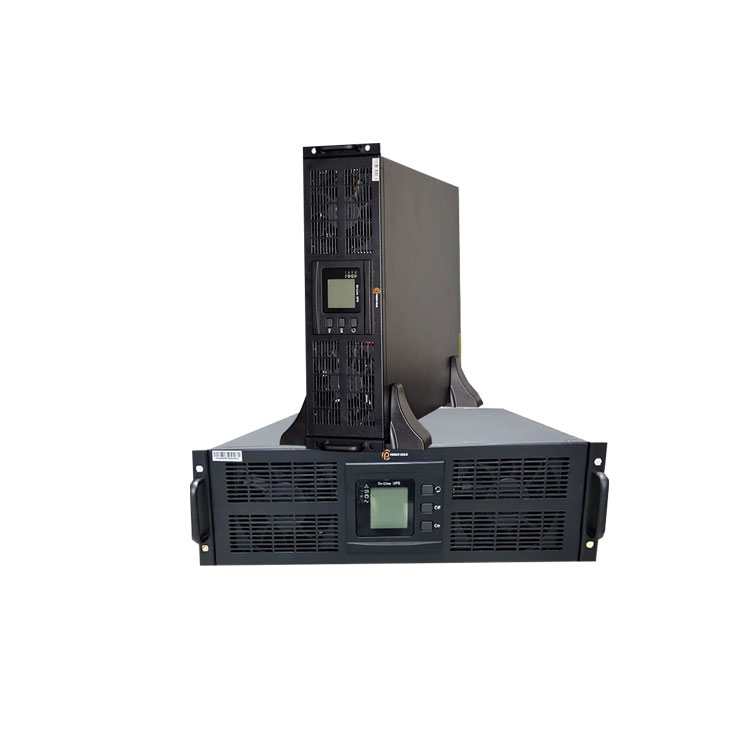

The Power Solid RM 3 Phase Online UPS 10kVA is a rack/tower convertible online double-conversion UPS with DSP control. It supports 3/3, 3/1 and 1/1 operation and N+X parallel redundancy for up to 4 units, making it a flexible choice for critical power protection.
Key Features
- LCD display with rack/tower convertible design
- N+X parallel redundancy, up to 4 units in parallel
- Online double conversion with DSP control
- Maximum charging current up to 20A (settable)
- Dual input source
- Supports 3/3, 3/1 and 1/1 operation
- 50/60Hz frequency converter mode
- Output can meet 100% unbalanced load
- Interfaces: RS232, RS485, parallel, intelligent slot (SNMP card / relay card optional), BMS (optional), EPO port, output port and maintenance bypass port
Specifications
- Capacity: 10kVA
- Design: Rack/tower convertible
- Operation modes: 3/3, 3/1 and 1/1
- Parallel redundancy: N+X, up to 4 units
- Max charging current: Up to 20A (settable)
- Frequency converter mode: 50/60Hz
Ideal For
- Data centers
- Medical facilities
- Telecommunications and industrial equipment
