Description

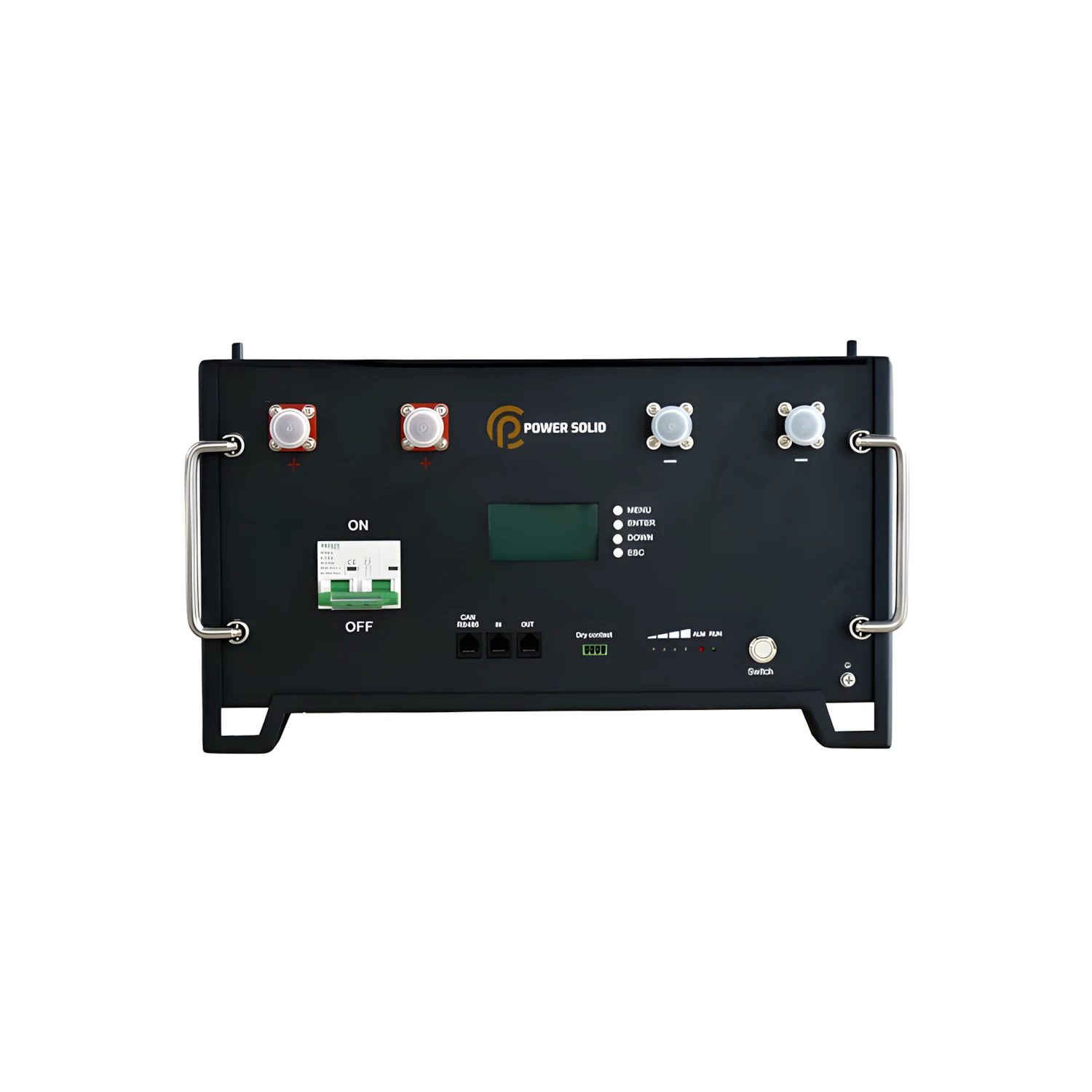

The Power Solid 51.2V 200Ah LST is a high-capacity lithium iron phosphate (LiFePO4) battery for residential, commercial and industrial energy storage. With 10.24kWh of energy, it provides reliable, efficient storage for solar systems and backup power.
Key Features
- High energy density for large-scale energy storage needs
- Long cycle life: up to 6000 charge-discharge cycles at 80% depth of discharge
- Advanced BMS protects against overcharge, over-discharge, over-current and short circuit
- Flexible installation: wall-mounted, vertical or rack-mounted
- Wide operating temperature range: discharge from -20°C to 60°C
- Low self-discharge: less than 3.5% per month
Specifications
- Nominal voltage: 51.2V
- Nominal capacity: 200Ah
- Total energy: 10.24kWh
- Chemistry: Lithium iron phosphate (LiFePO4)
- Cycle life: Up to 6000 cycles at 80% depth of discharge
- Charging voltage: 57.6V
- Discharge cut-off voltage: 43.2V
- Charging current: 40A
- Max continuous discharge current: 100A
- Dimensions (L × W × H): Approx. 620 × 693.5 × 190 mm
- Weight: Approx. 96 kg
- Operating temperature: Charging 0°C to 45°C; discharging -20°C to 60°C
- Storage temperature: -10°C to 45°C
- Certifications: CE, RoHS, MSDS, UN38.3
Ideal For
- Residential energy storage and home solar backup during outages
- Commercial and industrial energy storage
- Off-grid systems in remote locations
- Telecommunication infrastructure and data centers
- Renewable energy integration: storing excess solar and wind energy
